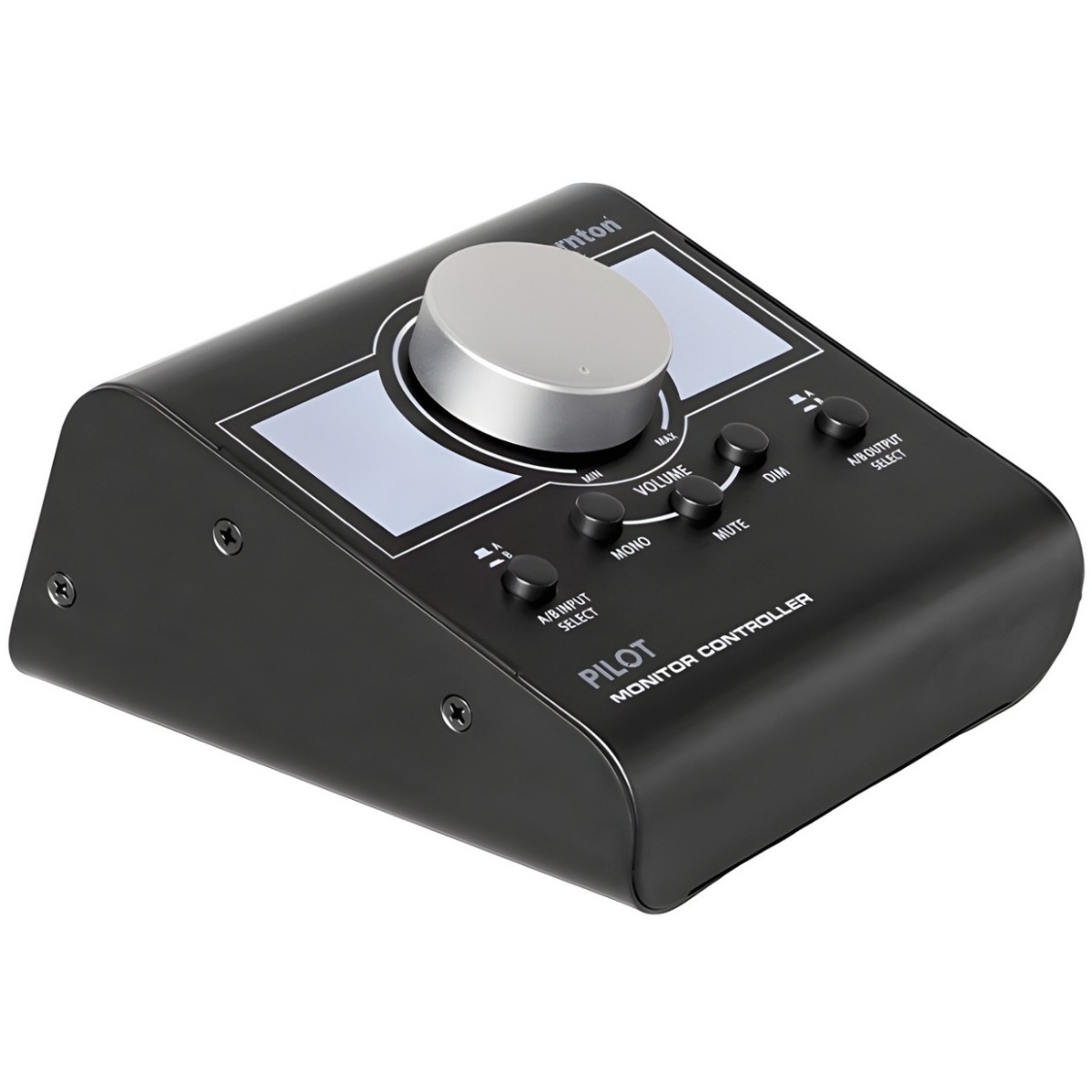

Transparent control at the heart of your studio: two stereo inputs, two monitor pairs, mono, mute and dim, all in a fully passive signal path with THD+N below 0.005%.
| Frequency Response: | ±1 dB, 10 Hz – 30 kHz (0 dBu input) |
| Total Harmonic Distortion + Noise (THD+N): | < 0.005% (0 dBu @ 1 kHz) |
| Crosstalk: | < –85 dB (20 Hz – 20 kHz) |
| Mute Attenuation: | –100 dB |
| Signal-to-Noise Ratio (A-weighted): | < –100 dB |
| All inputs: | +22 dBu |
| 1/4" outputs: | +15 dBu |

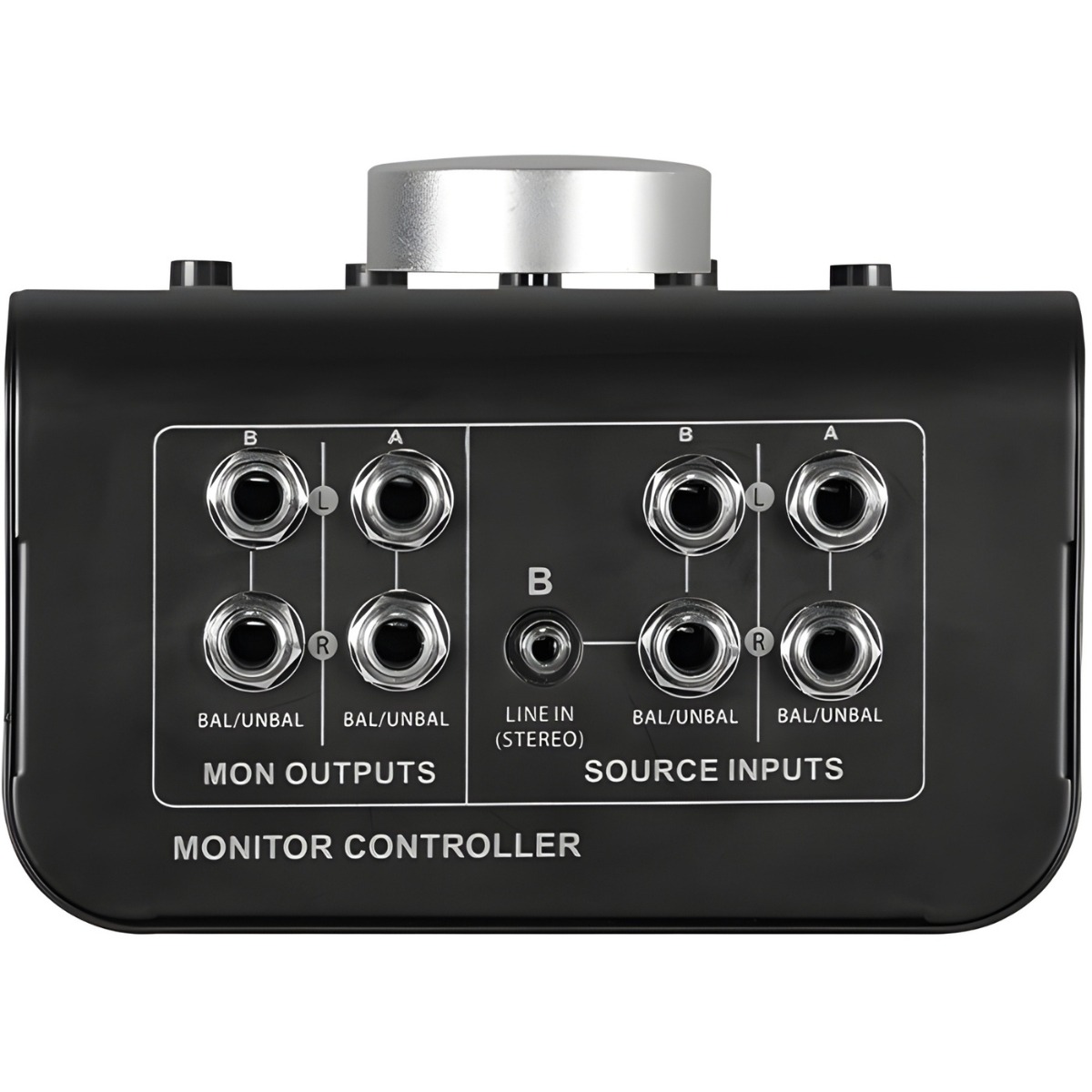

| Inputs: | 1/4" balanced / unbalanced (female), 1/8" unbalanced stereo (female) |
| Outputs: | 1/4" balanced / unbalanced (female) |
